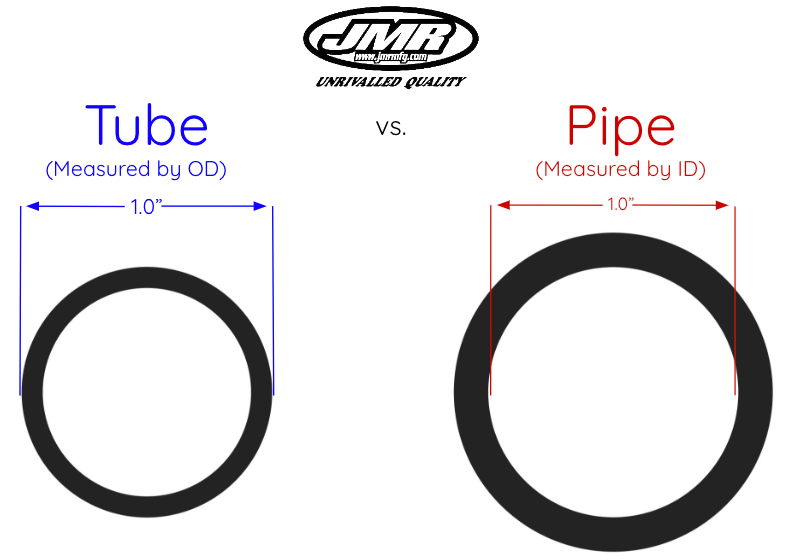

These dies fit all of the JMR Benders and can be used to bend the specified size Pipe (as measured by I.D.)

Material Size – refers to actual Inside Diameter of the pipe as measured with a caliper.

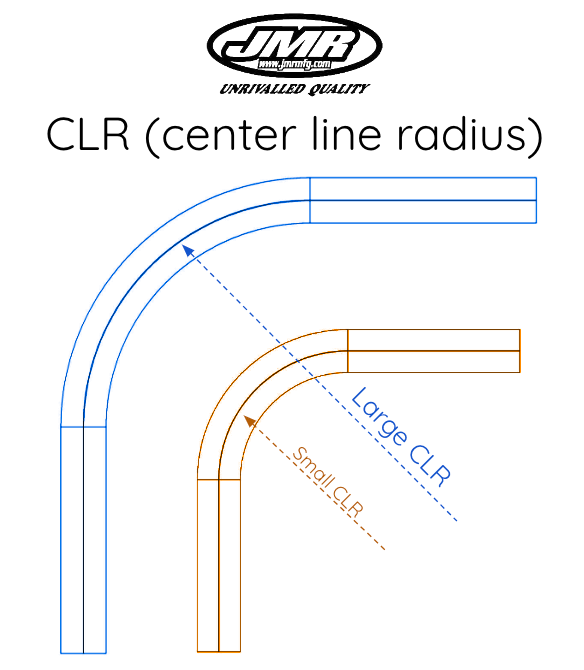

CLR – stands for Center Line Radius, meaning the bend radius as measured from the center rotation point of the die to the middle of the pipe. (see image)
Minimum Wall – denotes the minimum recommended wall thickness for consistent high quality wrinkle free bends at the specified radius. Please call for recommendations with aluminum.

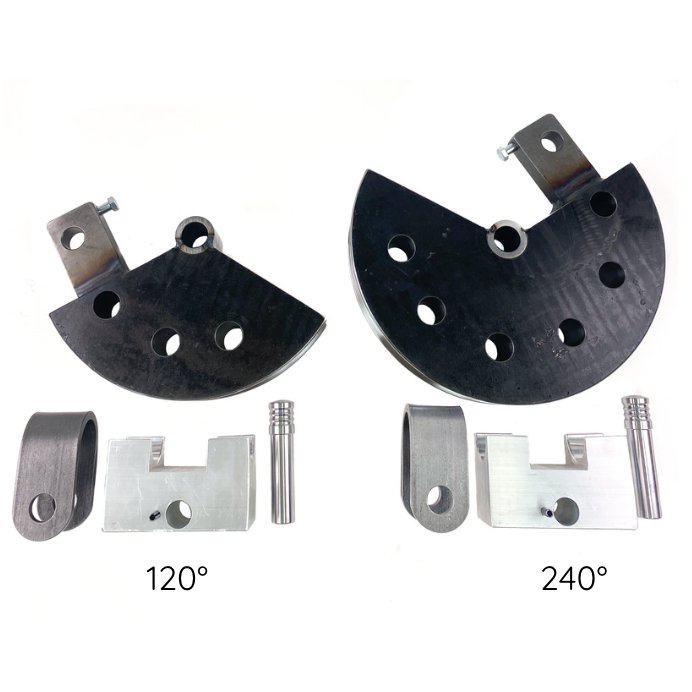

Max Degree of Bend – Dies can be purchased to bend up to 120 degrees or up to a full U-bend of 180 degrees after springback

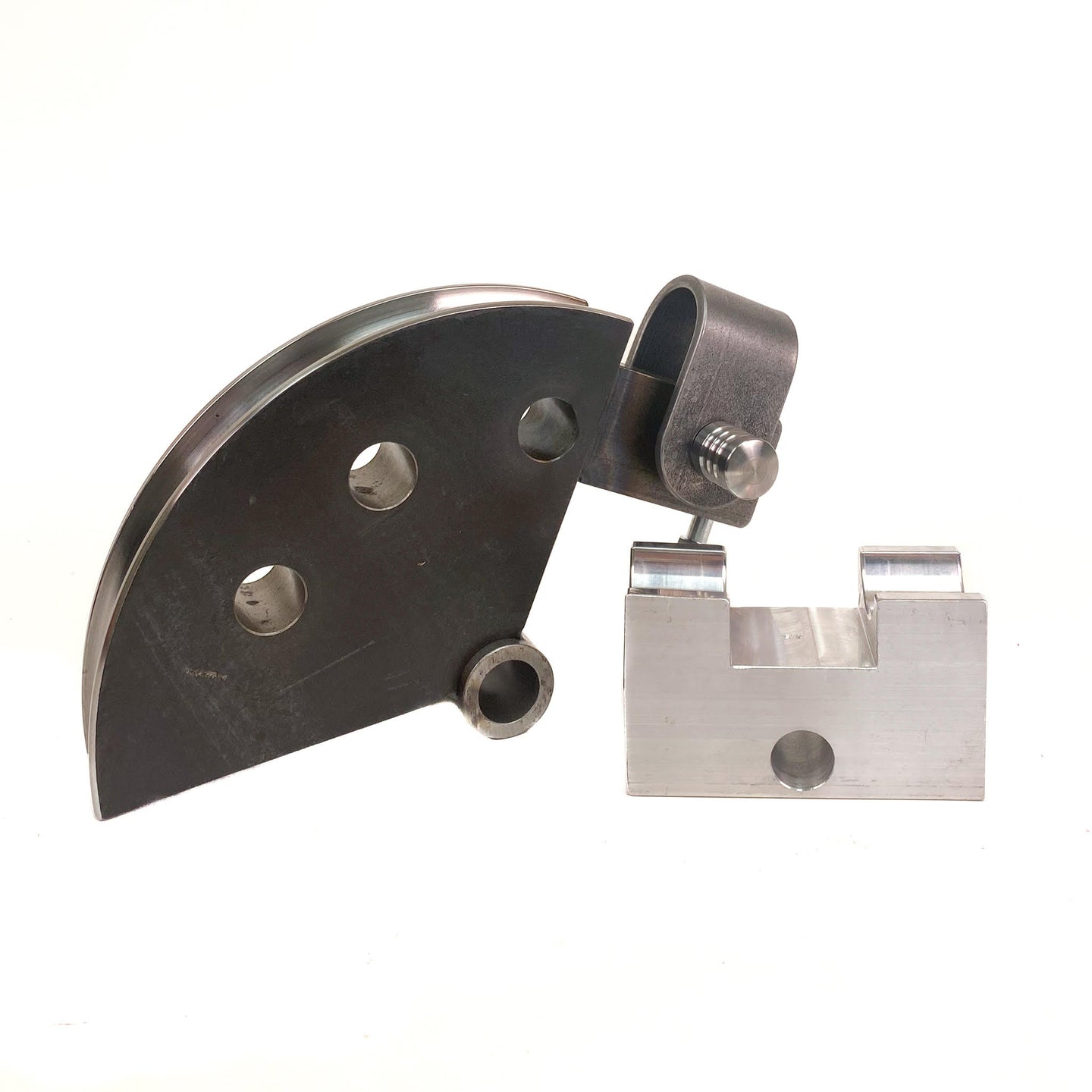

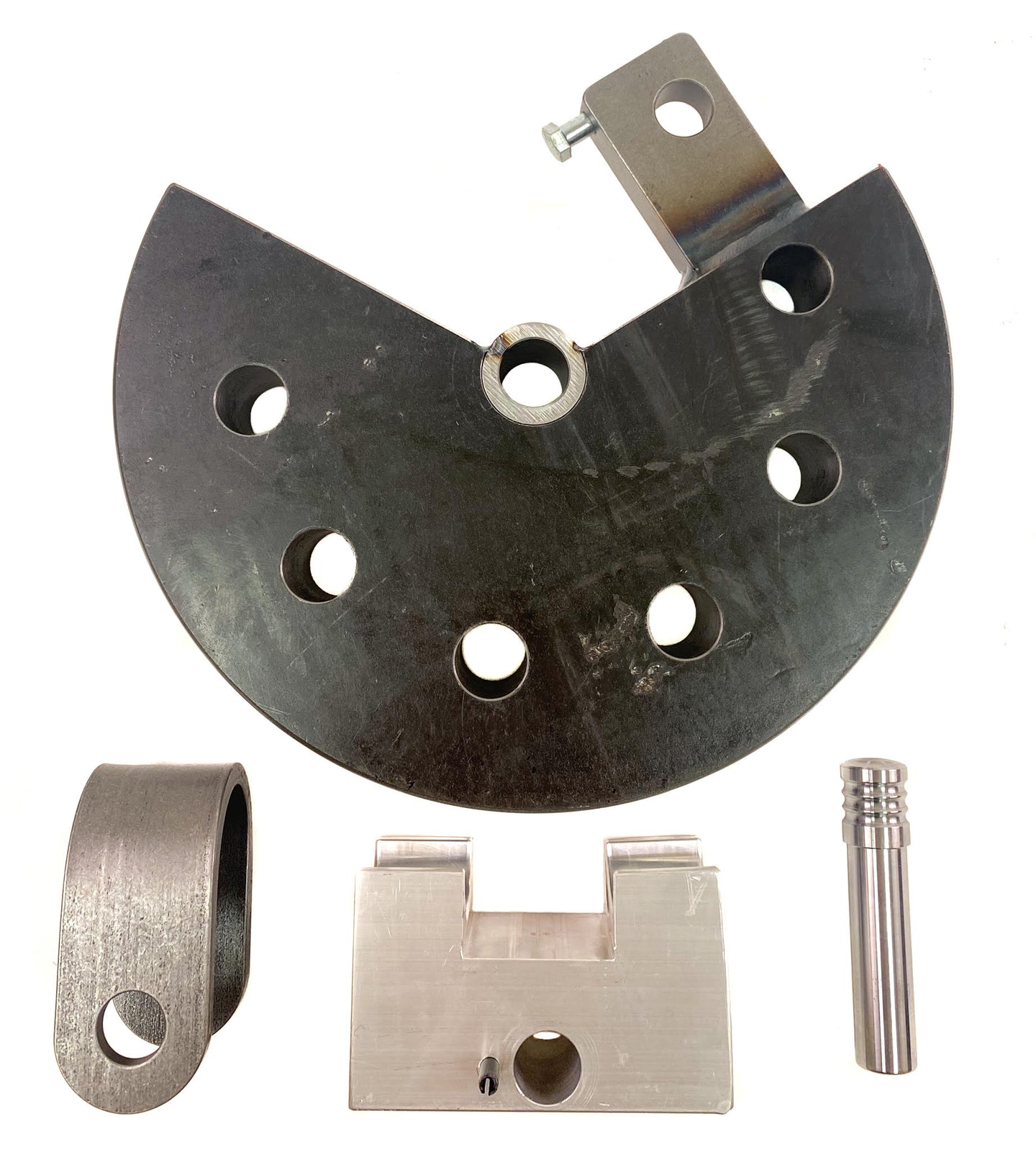

Includes:

  • Forming Die
  • Follower Block
  • U-Strap
  • U-Strap Pin

Pipe Die Set

$175
Material Size:
CLR:
Degree:
$175

These dies fit all of the JMR Benders and can be used to bend the specified size Pipe (as measured by I.D.)

Material Size – refers to actual Inside Diameter of the pipe as measured with a caliper.
CLR – stands for Center Line Radius, meaning the bend radius as measured from the center rotation point of the die to the middle of the pipe. (see image)
Minimum Wall – denotes the minimum recommended wall thickness for consistent high quality wrinkle free bends at the specified radius. Please call for recommendations with aluminum.
Max Degree of Bend – Dies can be purchased to bend up to 120 degrees or up to a full U-bend of 180 degrees after springback

Includes:

  • Forming Die
  • Follower Block
  • U-Strap
  • U-Strap Pin
